Search and Visualization Options

There are several ways to visualize and search GRAX data from within Salesforce.

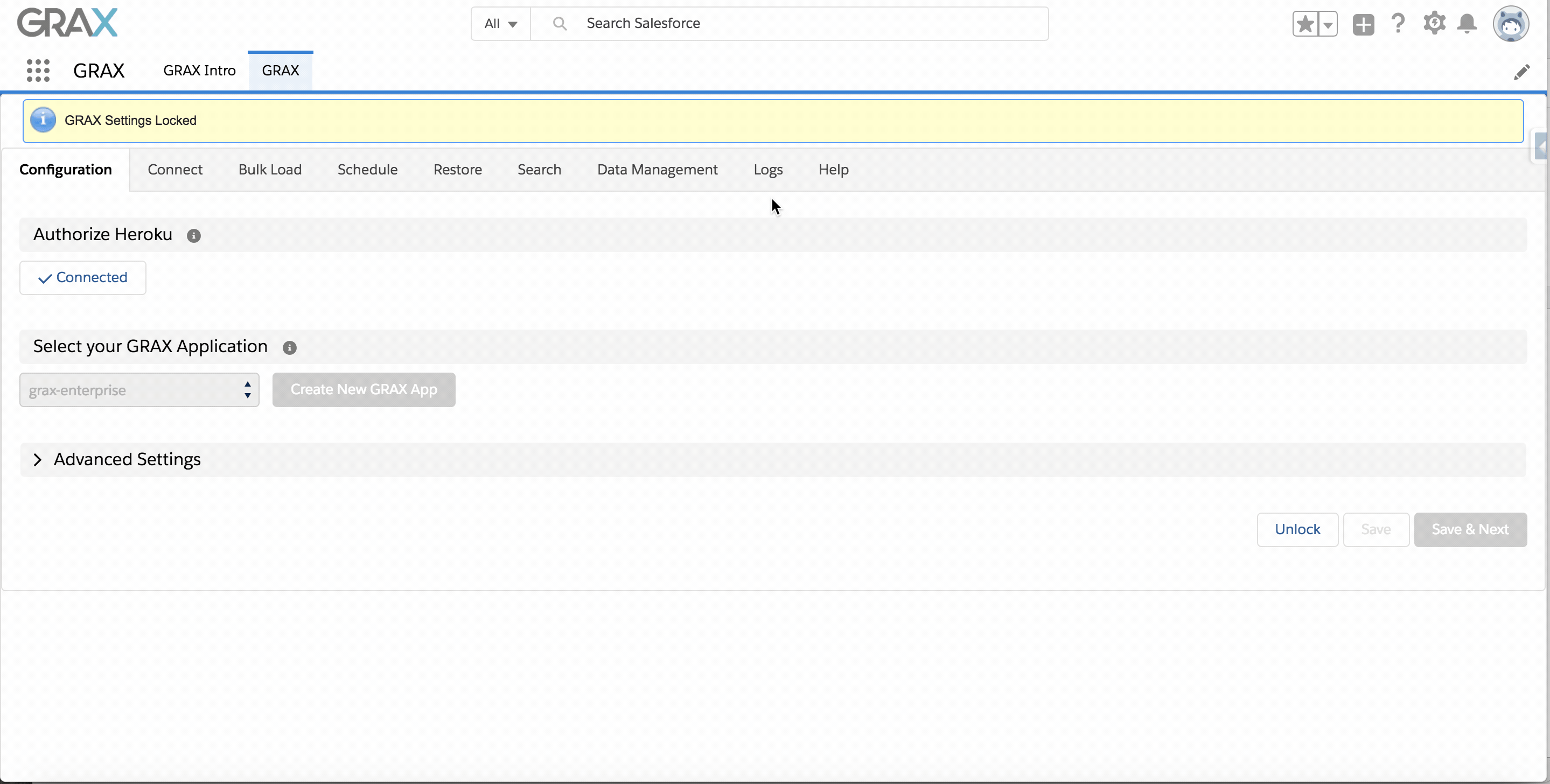

GRAX Search Tab

  1. Click on the tab GRAX
  2. Click on the sub-tab Search
  3. Select the GRAX Table, or Salesforce object, which you want to search on
  4. Select the fields which you would like displayed within your search results
  5. Enter any filter criteria to limit results that are returned
  6. Click Retrieve
  7. Your results will be similar to the below:

🚧

Rich Text Fields

Note that Salesforce rich text fields may render as html.

Let's search for Account records in our data lake that have a specific Account Number.Let's search for Account records in our data lake that have a specific Account Number.

Let's search for Account records in our data lake that have a specific Account Number.

Video Walkthrough

📘

Search Tab Considerations

  • Works in Classic or Lightning
  • This is the default recommended functionality in GRAX to search, view, and recreate.
  • You can find more information about permissions here

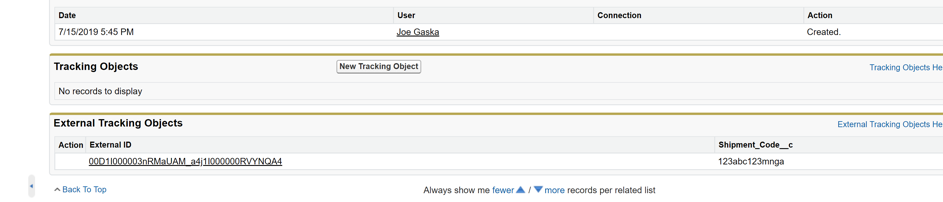

Salesforce Related List via Salesforce Connect

  • Works in Classic or Lightning
  • Requires Salesforce Connect (licensed separately)
  • Can view external records in Related List section/tab in Salesforce
  • More information on setup available here

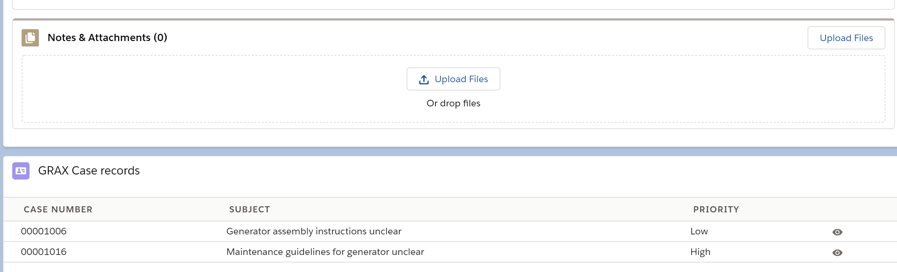

GRAX Lightning Connect Related List

  • Requires Lightning (does not work in Classic)
  • Requires custom domain enabled in Salesforce
  • Can view external records in a customizable lightning component
  • More information on setup available here

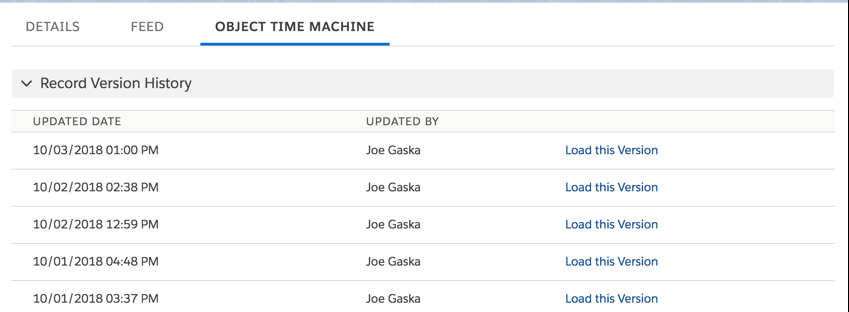

GRAX Visualforce Component for Time Machine

  • Works in Classic or Lightning
  • Can embed on page layout and restore a specific version of the current record
  • More information on setup available here

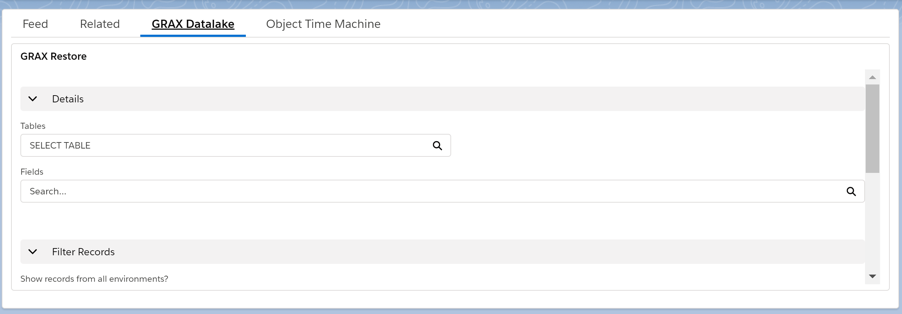

GRAX Visualforce Component for Search/Restore

  • Works in Classic and Lightning
  • Can embed on page layout and search / restore records related to current record
  • More information on setup available here

Lightning Utility Item

GRAX offers a lightning utility item that you can add to your lightning app utility bar. This can prove to be an extremely helpful utility for your users in Lightning, who will now be able to search GRAX no matter where they are in Lightning.

In order to set this up, simply go to your App Manager in lightning and add a Visualforce component to the Utility Items. Choose the GRAXSearch Visualforce page.

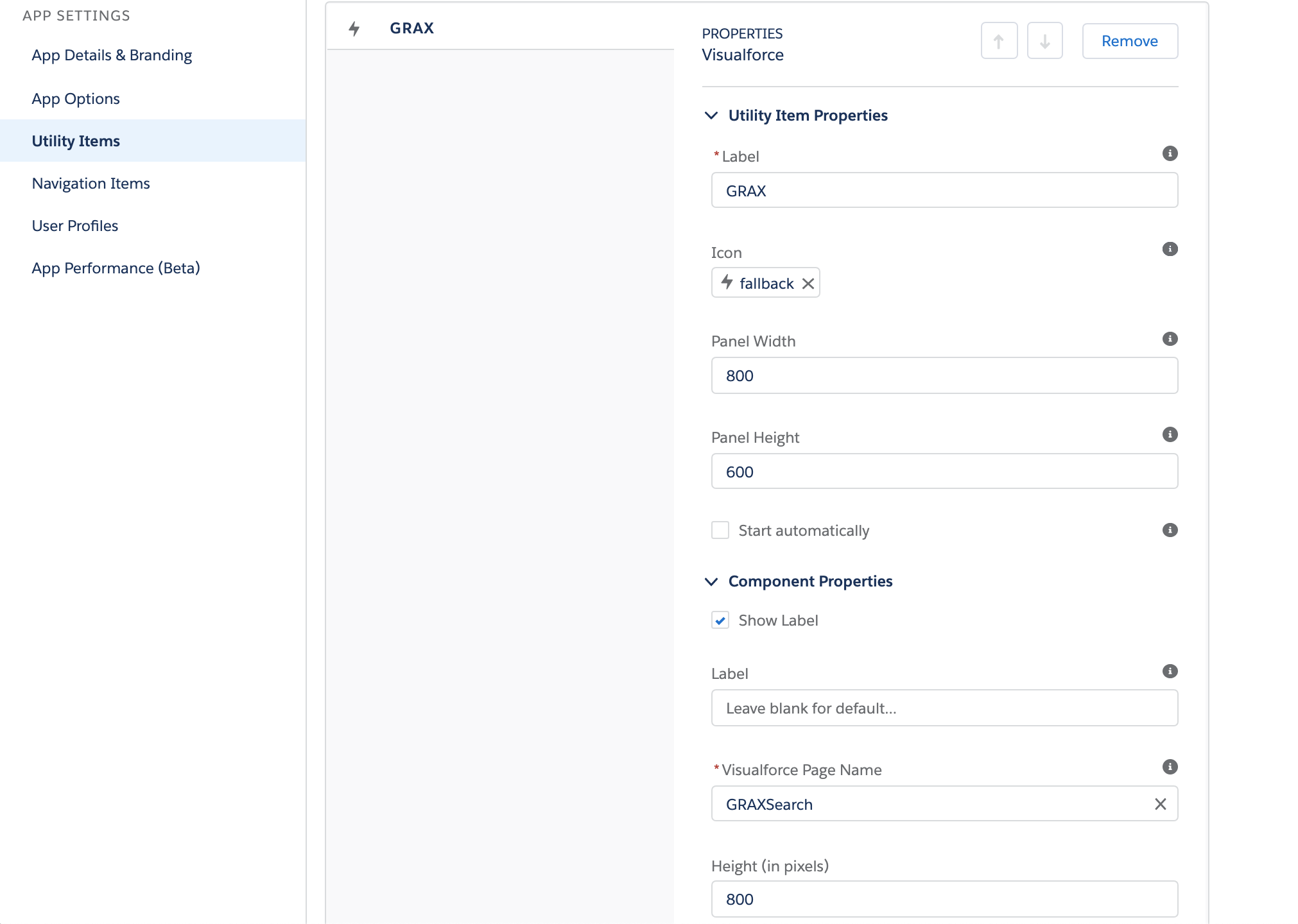

Here's a sample setup of a GRAX utility widget.  Remember to play around with the height/width that feels comfortable for your users.Here's a sample setup of a GRAX utility widget.  Remember to play around with the height/width that feels comfortable for your users.

Here's a sample setup of a GRAX utility widget. Remember to play around with the height/width that feels comfortable for your users.

The utility widget will allow for the same functionality at the GRAX Search tab, with the main difference being that you cannot preview or restore; only search functionality will be enabled.

🚧

Popping Out the Utility

Note that if you pop-out the utility, it will reset and you will lose your search preferences and results.

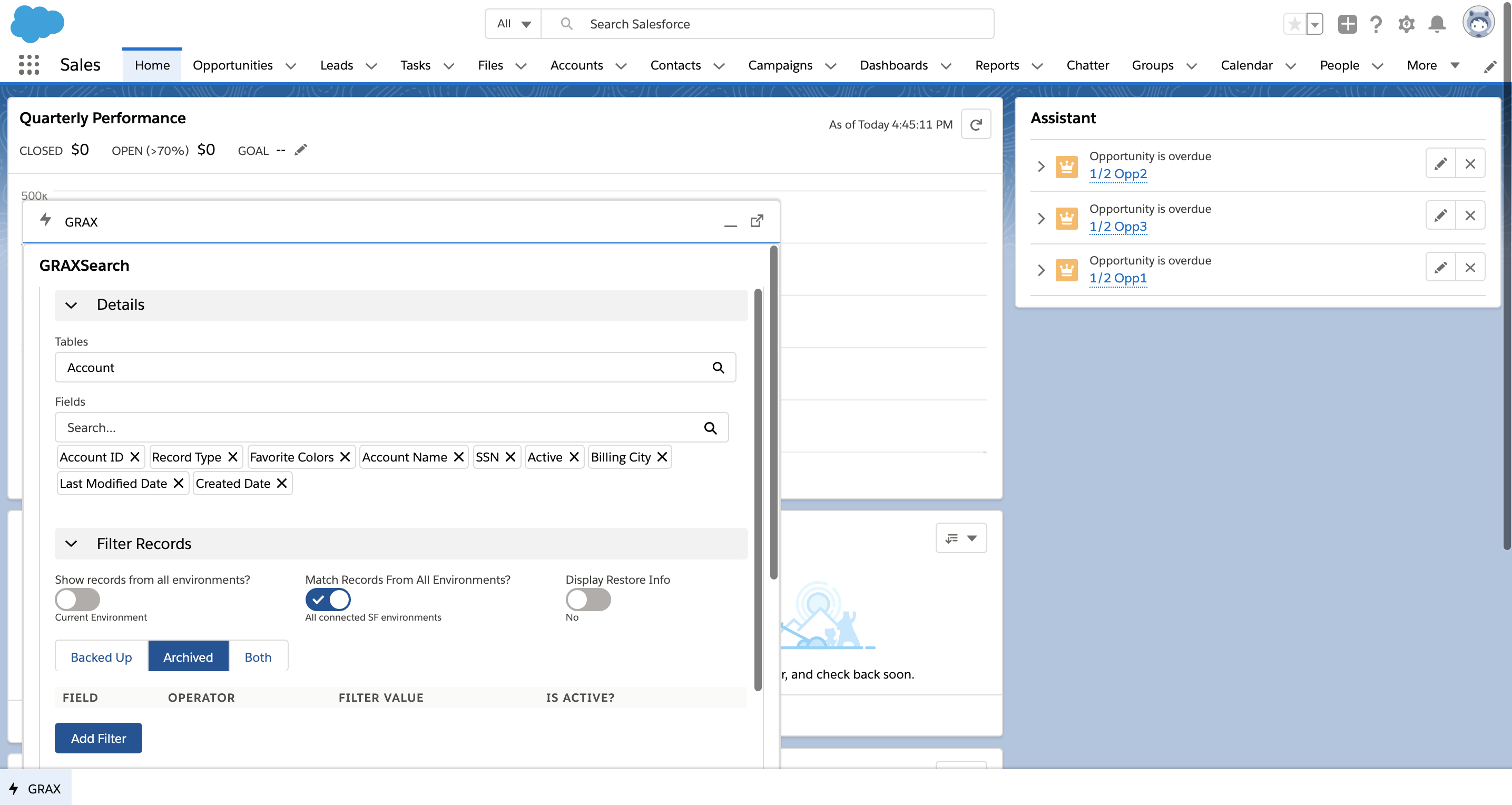

Leverage the GRAX search functionality right from the lightning utility bar.Leverage the GRAX search functionality right from the lightning utility bar.

Leverage the GRAX search functionality right from the lightning utility bar.

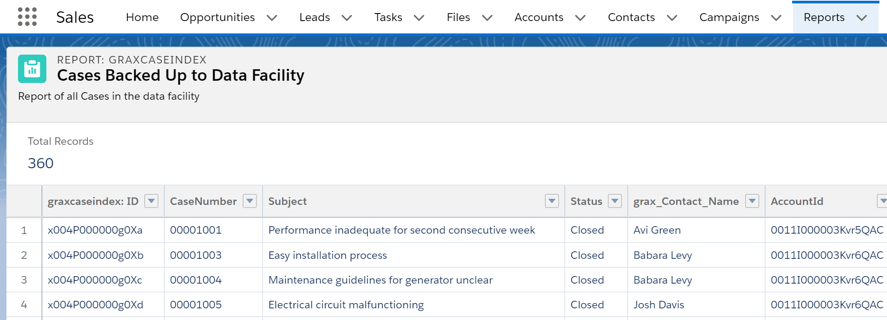

Salesforce Reports via Salesforce Connect

  • Works in Classic or Lightning
  • Requires Salesforce Connect (licensed separately)
  • More information on setup available here
  • Verify Salesforce limits and considerations here

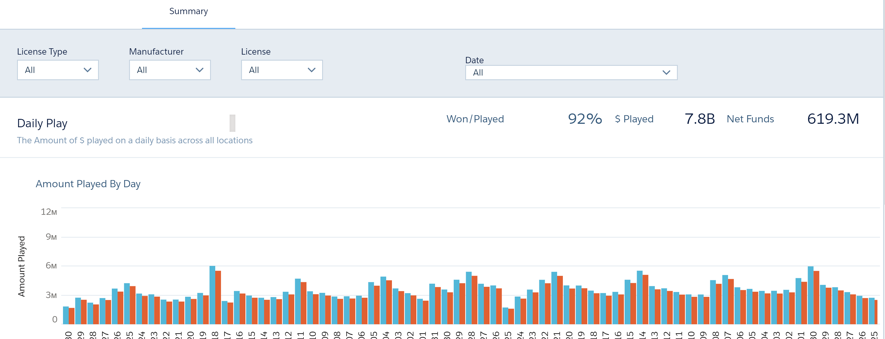

Einstein Analytics

  • Works in Classic or Lightning
  • Requires Einstein Analytics (licensed separately)

Appendix

Salesforce Connect Overview

Salesforce Connect maps Salesforce external objects to data tables in external systems. Instead of copying the data into your org, Salesforce Connect accesses the data on demand and in real time. The data is never stale, and we access only what you need.

Einstein Analytics Overview

Einstein Analytics allows you to explore all of your data quickly and easily by providing AI-powered advanced analytics, right in Salesforce. Manage your datasets, query data with Salesforce Analytics Query Language (SAQL), and customize dashboards, all programatically.

In addition to offering pre-built apps for Sales, Service, and Marketing, the Einstein Analytics Platform gives you the flexibility to:

  • Build your own custom, intelligent analytics apps
  • Utilize our APIs and SDKs to enhance your app
  • Connect to outside data sources to see all of your data in one place
